Practix OK-375
Dual Station Embossing Shuttle Press
The Practix OK-375 platen machine is specially designed to suit the needs of many types of manufacturing and printing operations including dye sublimation and heat transfer printing on a large variety of substrates. The OK-375 is an automatic heavy-duty dual station press. With its large airbags, the machine is able to print onto materials with decreased dwell times. These presses are perfect for the embossing and printing of rugs, shirt collars, cuffs, and fronts, and more commercial products that require a high level of fusing pressure while maintaining high productivity. Like all Practix heat transfer equipment, the dual station shuttle line is made from a heavy duty steel-forged frame, and its simple unitized design gives it an unsurpassed durability and stability for precise printing.
Extremely simple in operation, minimum physical effort, and high productivity are the result of the dual station system. With this system, one platen is under the print head while the other is available for loading. Premium quality printing is achieved due to the electronic temperature and time control system. A high watt density heater on the platen allows the heater to heat up faster and maintain consistent temperature during production.
Practix OK-375 machine includes:
- Air operated heated head movement for increased productivity
- Simple operation requiring little physical effort
- No need to slide trays back and forth
- Two work stations – one working surface loads while the other presses
- Precision electronic temperature controller with digital display to prevent any temperature inconsistencies
- Timer with duty cycles of 1/10th of a second durations for consistency and quality of work
Specifications include:
- Platen dimensions: 16” x 20” or 20” x 25”
- Fusing pressure: 100 psi
- Air line pressure: 100 psi
- Power requirements: 240 V, 1 phase
- Connected load: 25 Amps
Our sublimation equipment is fully customizable to your desired size and color. All of our heat transfer machinery comes backed with a one-year mechanical warranty and a six-month electrical warranty.
In addition, we offer next day and worldwide shipping, so whether you make hats in Baltimore or t-shirts in Hong Kong, we can supply you with the top-quality embossing machines in the industry.
Call or e-mail us today to discuss our affordable fabric sublimation equipment for your business.

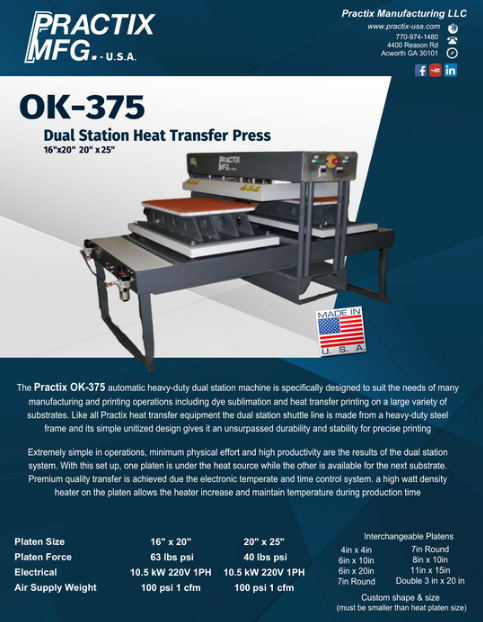

Click to see brochure
Order Parts:
| Name | Image | Summary | Bin | Price | Buy |
|---|---|---|---|---|---|

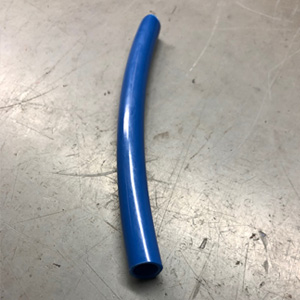

| 10-05 |  | 3/8″ Tubing | C-4-5 | $9.48 | |
| 10-110 |  | Air bag 18.1 dia 1 conv. 1/4 NPT | Z-2-1 | $644.64 | |
| 10-123 | Air bag 18.1dia 1conv. 1/4 NPT | Z-2123 | $1,540.00 | | |

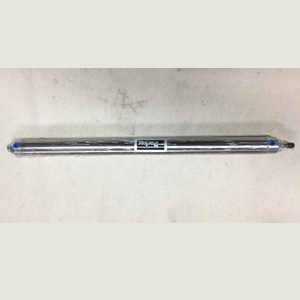

| 10-201 |  | Head Pusher Cylinder | Y-2-1 | $172.14 | |

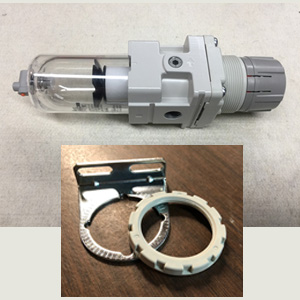

| 10-300 |  | Filter Reg AW20 w/nut & bracket | C-4-0 | $134.94 | |
| 10-304 |  | Filter Reg AW30 w/nut & bracket | C-4-1-1 | $85.05 | |

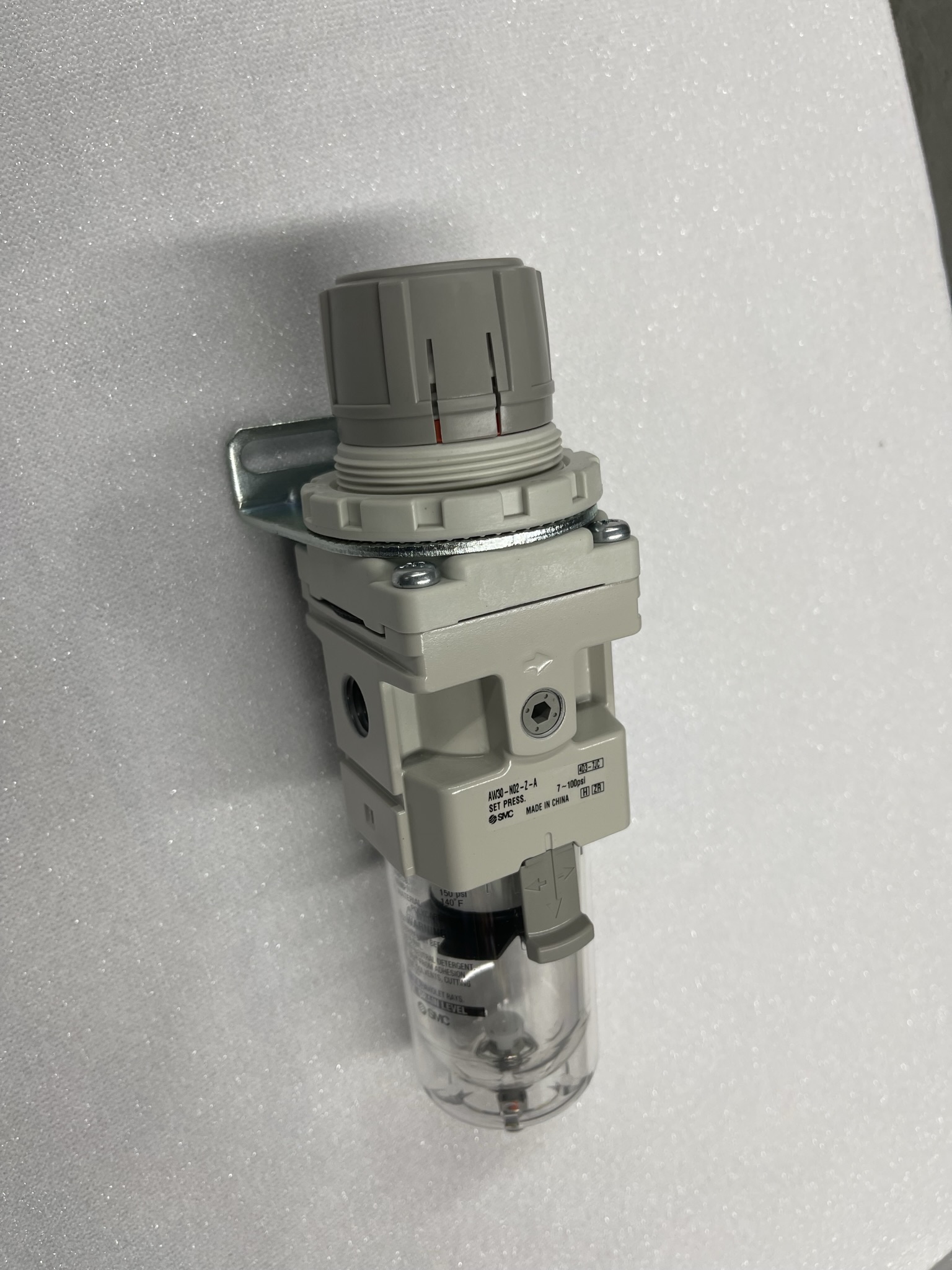

| 10-305 |  | Cylinder Pressure Filter/Regulator 30 | C-4305 | $170.10 | |

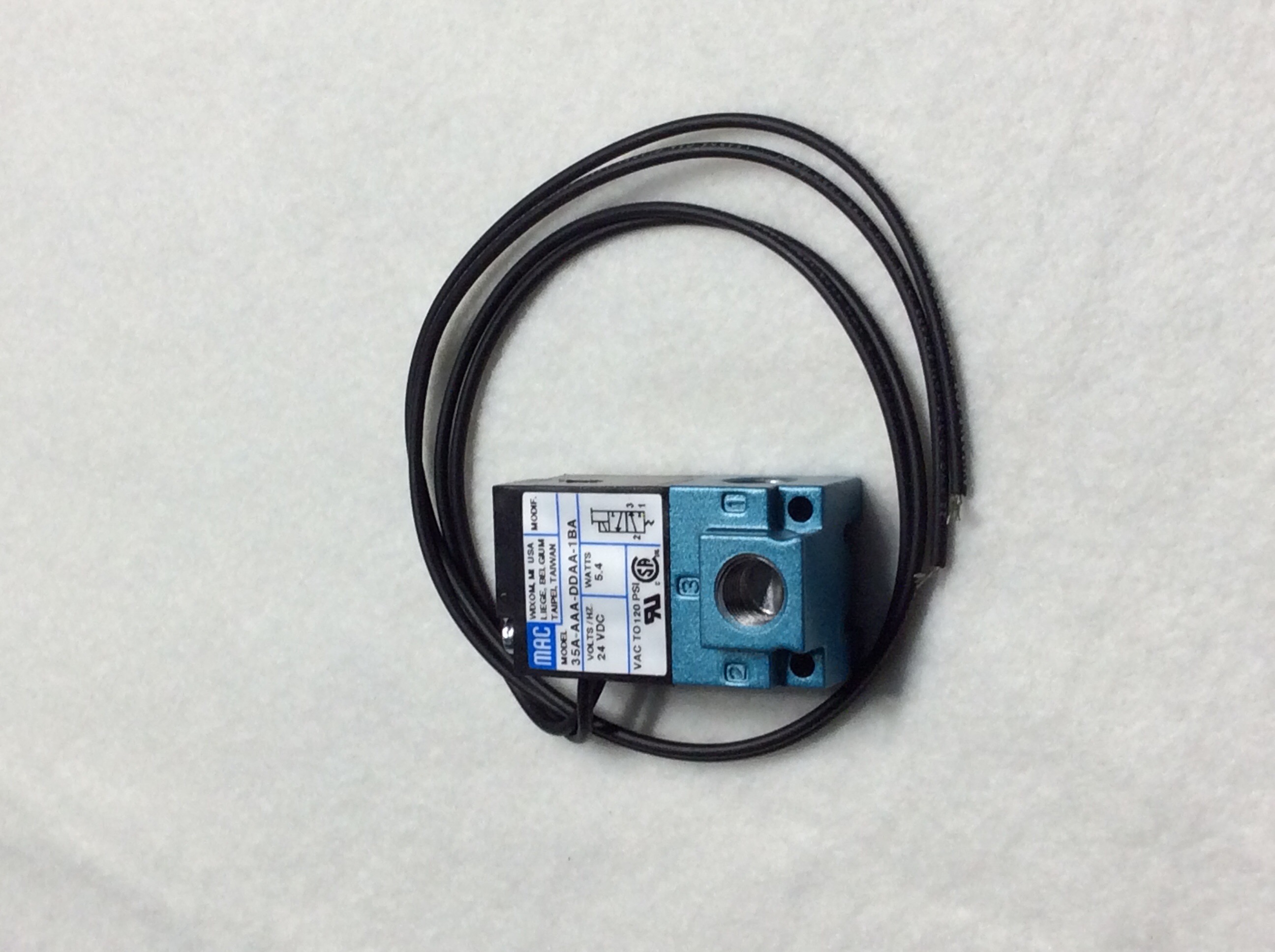

| 10-400 |  | Tension Solenoid Valve (Non Touchscreen System) | C-4400 | $113.40 | |

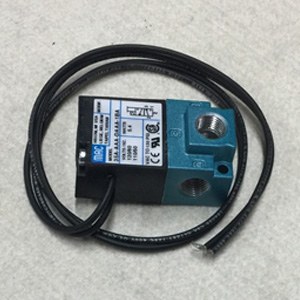

| 10-402 |  | Solenoid Valve 35A 3 way | C-4-3 | $56.70 | |

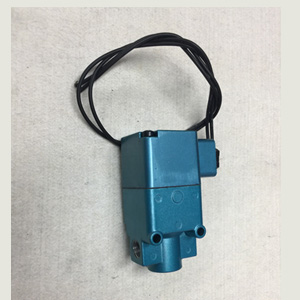

| 10-403 |  | Solenoid Valve Airbag Press | C-4-2 | $133.14 | |
| 10-500 |  | 1 1/2″ 0/100 PSI Panel Gauge | C-3500 | $58.60 | |

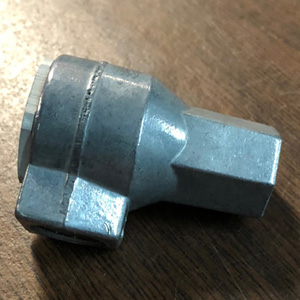

| 10-600 |  | SQ 2 | C-5-1 | $39.15 | |

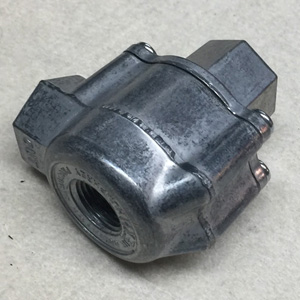

| 10-601 |  | QE2 Quick Exhaust Valve | C-5 | $94.32 | |

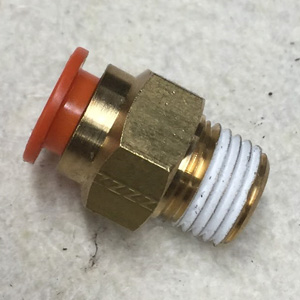

| 10-707 |  | Fitting Stgt 3/8Hose 1/4NPT Ma | BB-1-1 | $4.50 | |

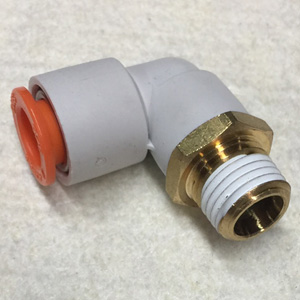

| 10-719 |  | Fitting Elbow 3/8 Hose 1/4 NPT | BB-1 | $7.32 | |
| 10-721 |  | Fitting Elbow 3/8 Hose 1/4 NPT | BB-1721 | $14.64 | |

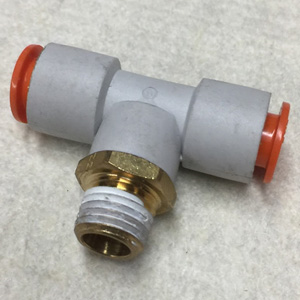

| 10-733 |  | Fitting Tee 3/8″ Hose 1/4″ NPT | BB-2 | $15.78 | |

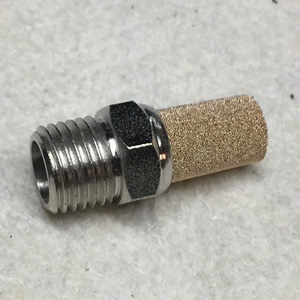

| 10-738a |  | Fitting 1/8″ Muffler | BB-2-3 | $3.18 | |

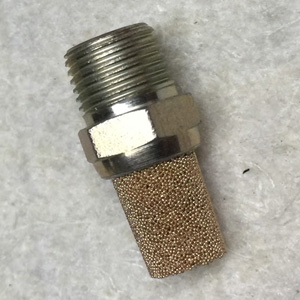

| 10-739a |  | Fitting 1/4″ Muffler | BB-2-1 | $4.35 | |

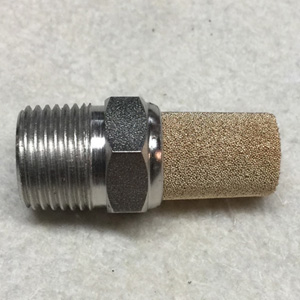

| 10-740 |  | Fitting 3/8″ Muffler | BB-2-2 | $6.36 | |

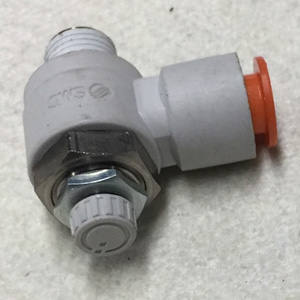

| 10-752 |  | FlowControl 3/8″ Hose1/4″ NPT | BB-3 | $3.63 | |

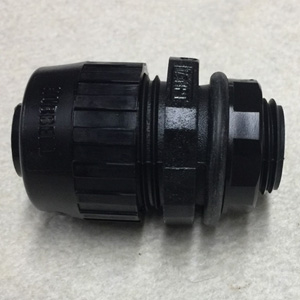

| 10-770 |  | Flex 1/2″ Straight Conduit | O-3 | $7.74 | |

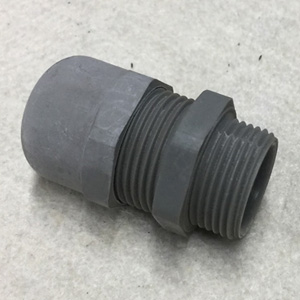

| 10-770a |  | SJO cord fitting | O-3-2 | $70.50 | |

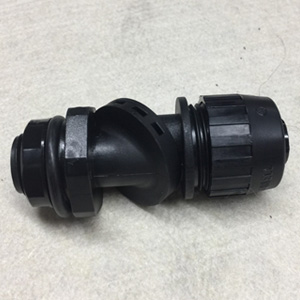

| 10-772 |  | Flex 1/2″ Elbow 90 Deg | O-3-1 | $12.21 | |

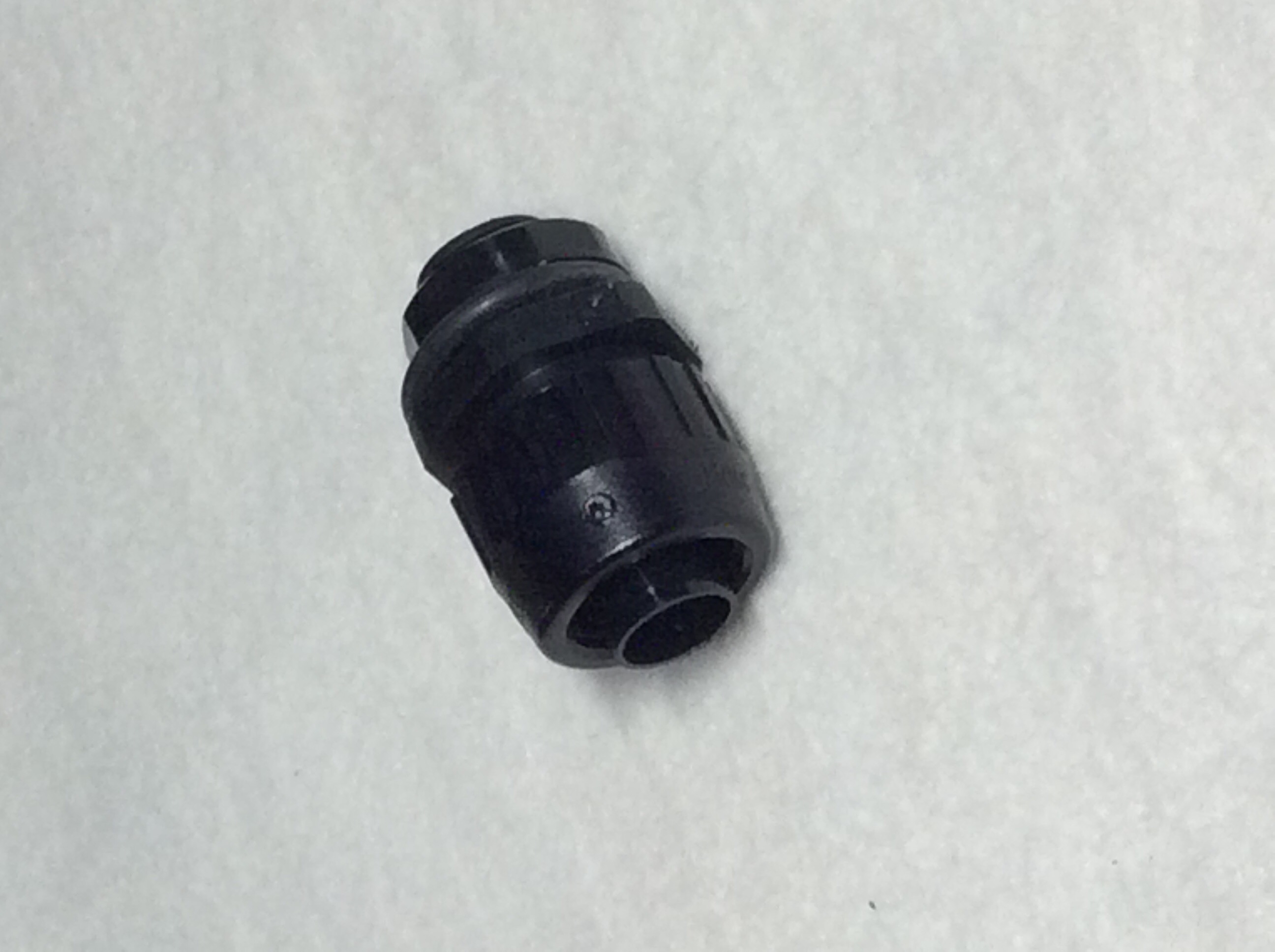

| 10-781 |  | Flex 1/2″ Straight Conduit | O-3781 | $15.48 | |

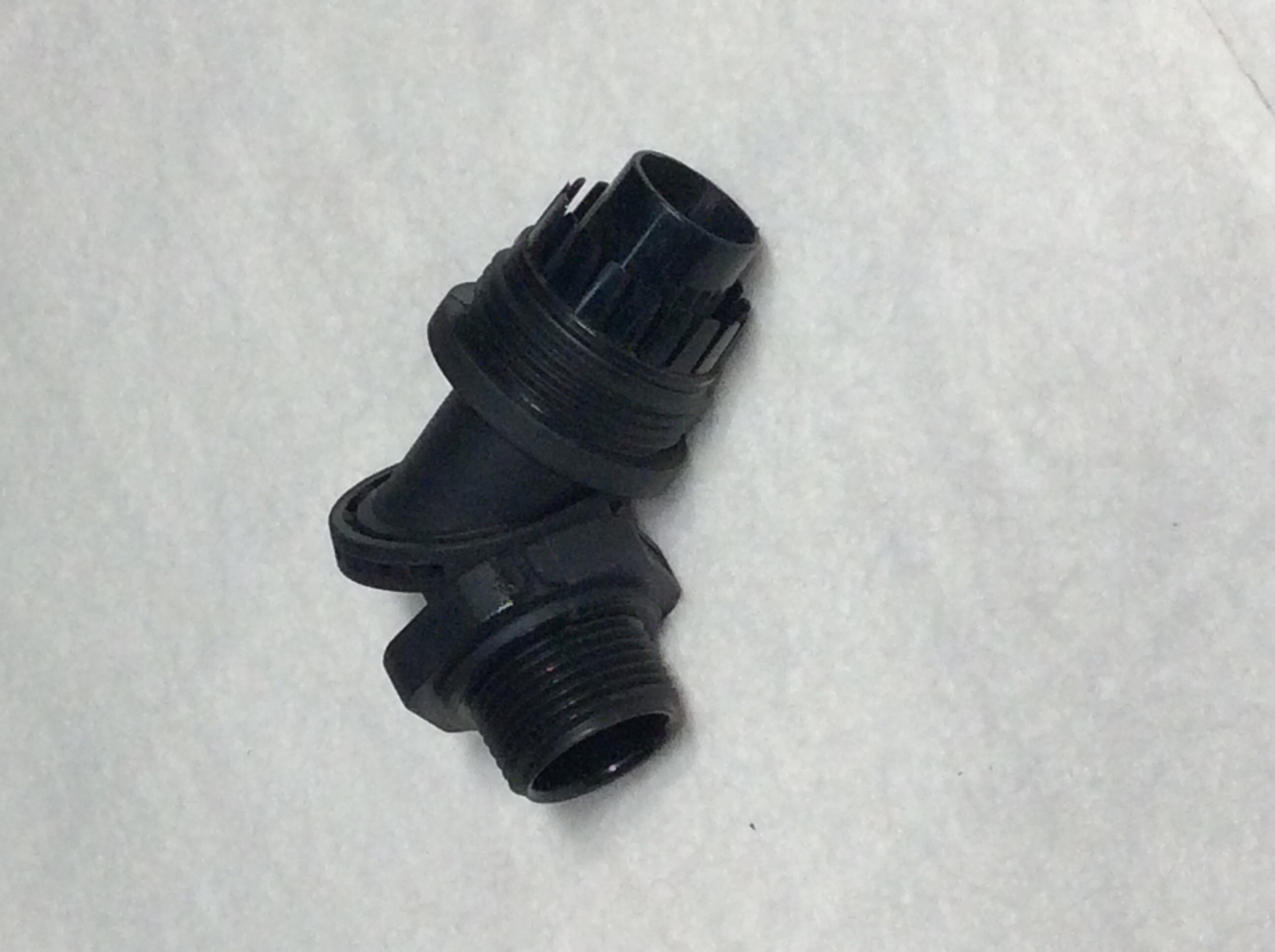

| 10-782 |  | Flex 1/2″ Elbow 90 Deg | O-3782 | $24.10 | |

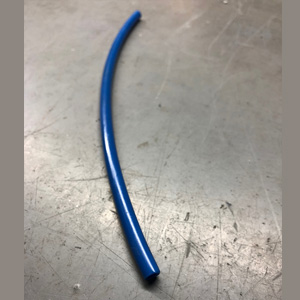

| 10-901 |  | 1/4″ Air Tubing | ELECTRICAL | $492.10 | |

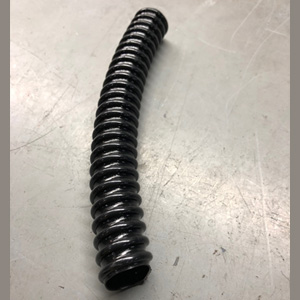

| 10-904 |  | Flexible liq tight conduit 1/2 | ELECTRICAL-1 | $2.70 | |

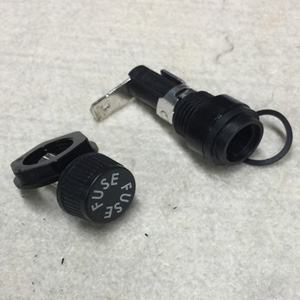

| 20-1013G |  | Panel Fuse Holder | B-2-2 | $18.20 | |

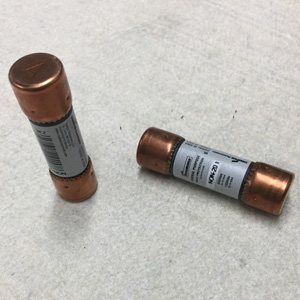

| 20-1014G |  | Fuse NON 20A | B-3 | $3.48 | |
| 20-102 |  | Temperature Controller (Machine with No Touchscreen) | G-3 | $525.20 | |

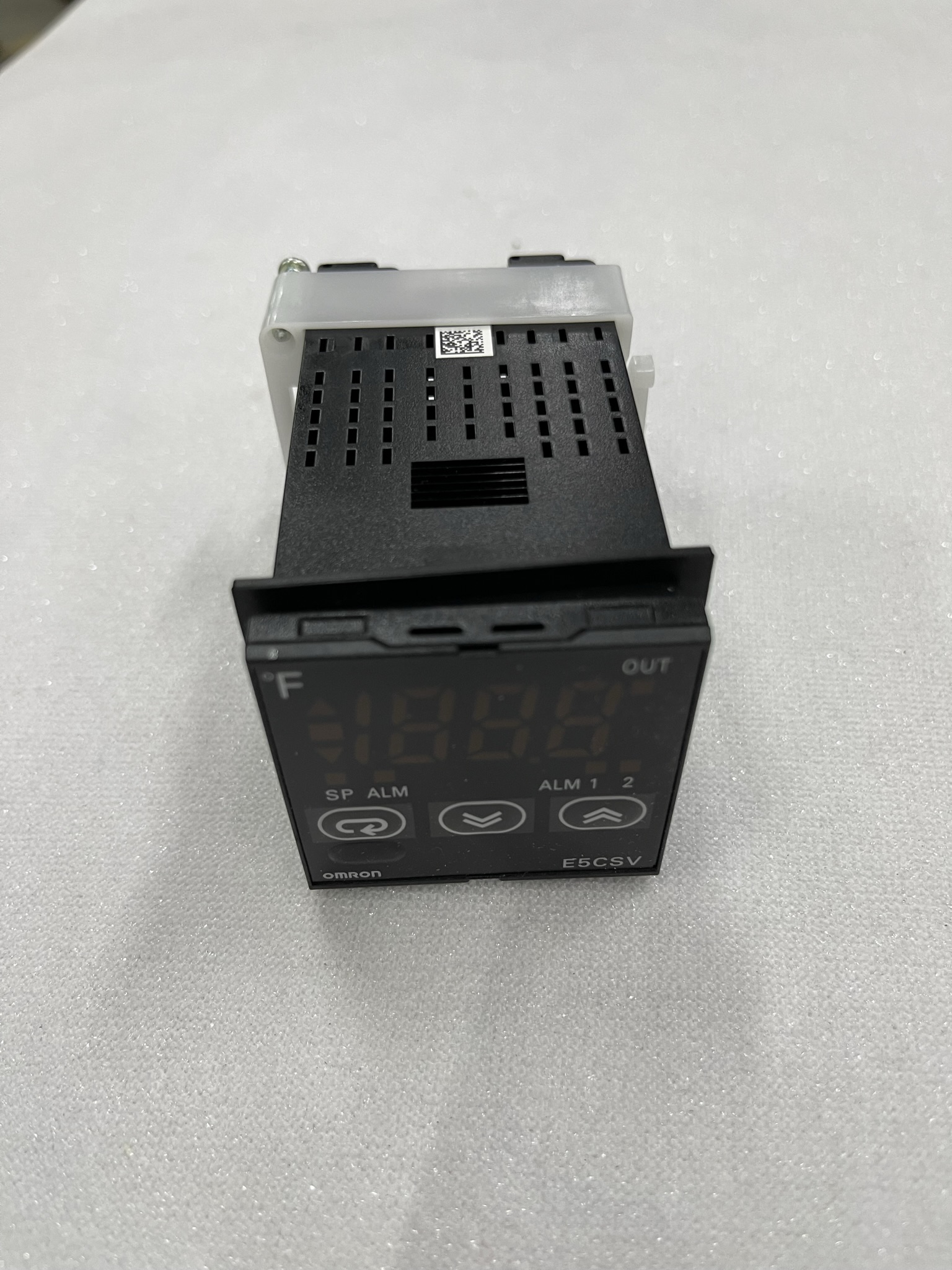

| 20-106 |  | Temperature Controller E5CSV | G-3106 | $415.90 | |

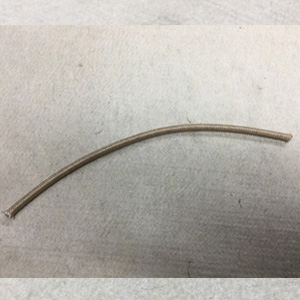

| 20-1402a |  | Hi Temp Wire 10 AWG per foot | ELECTRICAL-3 | $4.95 | |

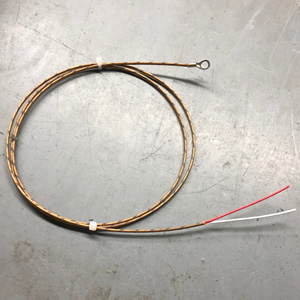

| 20-1413 |  | Thermocouple | ELECTRICAL-4 | $29.79 | |

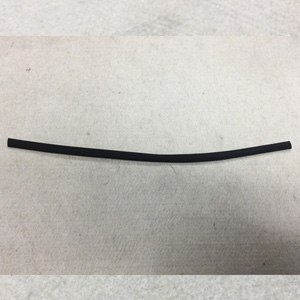

| 20-1419 |  | Thermocouple sleeve #0 .330 | ELECTRICAL-2 | $3.84 | |

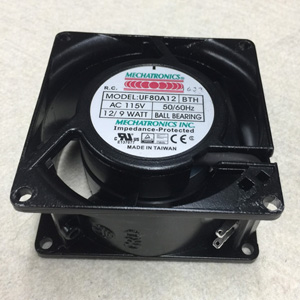

| 20-1700 |  | Axial Fan 3 1/8″ | H-1 | $72.10 | |

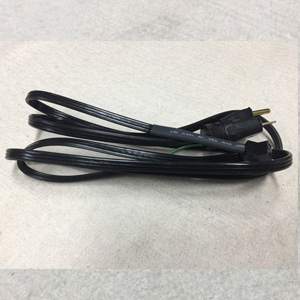

| 20-1706 |  | Fan chord | H-3-2 | $3.87 | |

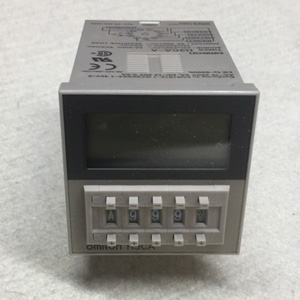

| 20-200 |  | Timer | G-3-1 | $482.10 | |

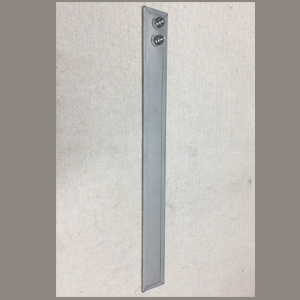

| 20-2007m |  | Heater Element 1.5″ x 15.5″ | F-6 | $52.44 | |

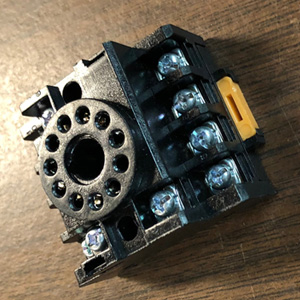

| 20-201 |  | Timer Socket | G-3-2 | $18.10 | |

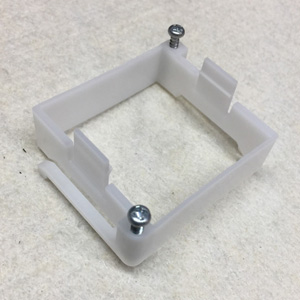

| 20-202 |  | Plastic Timer Holder | G-3-3 | $50.10 | |
| 20-2500 |  | End stop for terminal block | A-2-5 | $7.10 | |

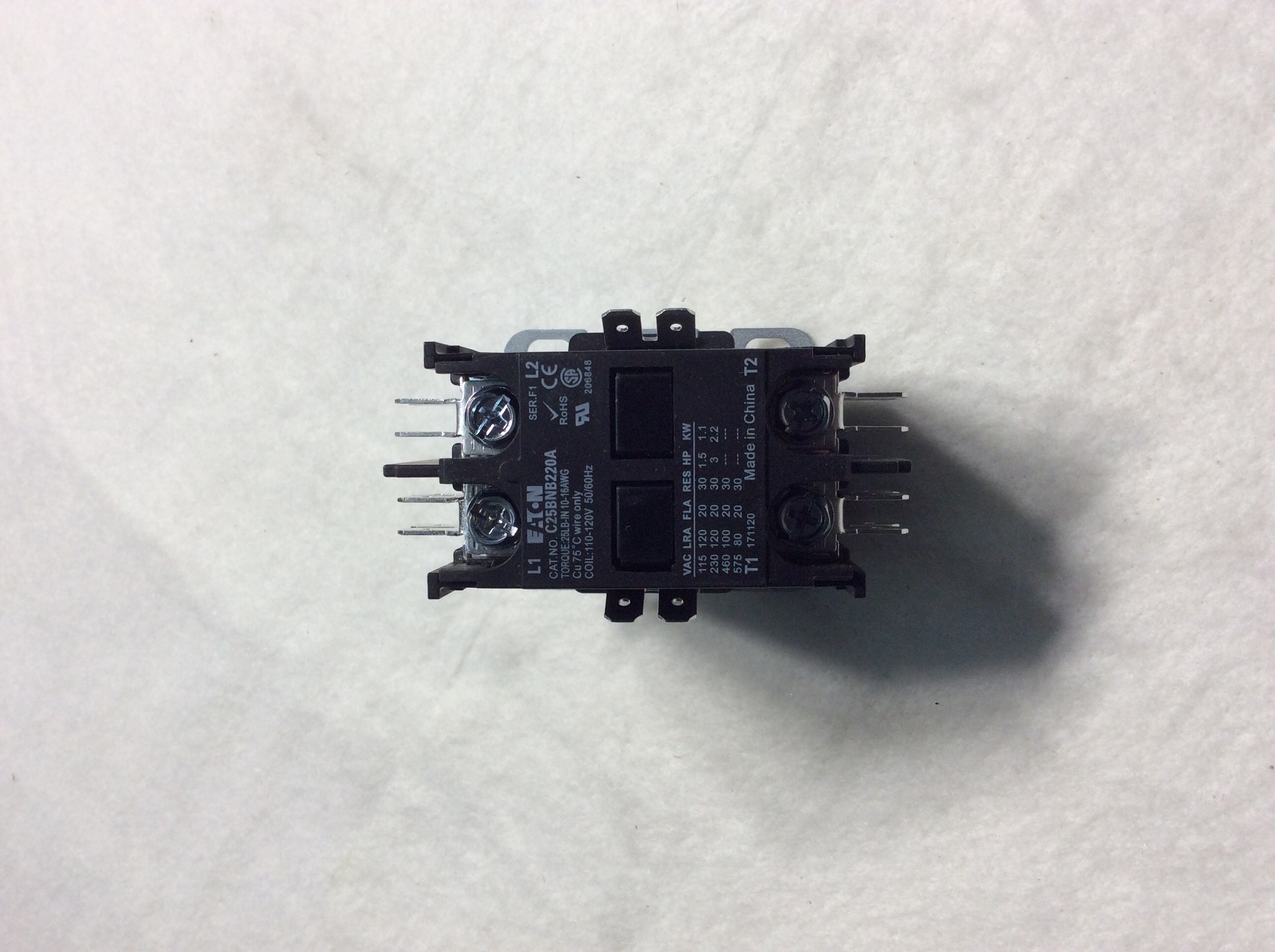

| 20-302 |  | Heat Contactor | G-4 | $116.20 | |

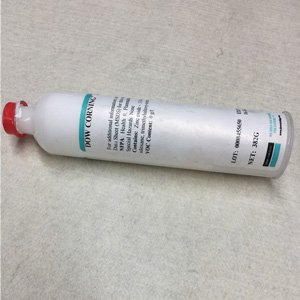

| 20-3401 |  | Heat Sink Compound 382 g | H-4 | $389.20 | |

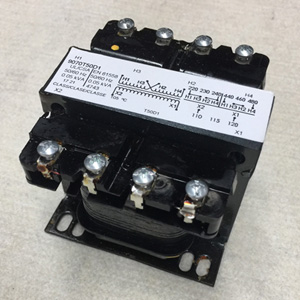

| 20-401G |  | Transformer 50VA 1 Phase | H-5 | $111.00 | |

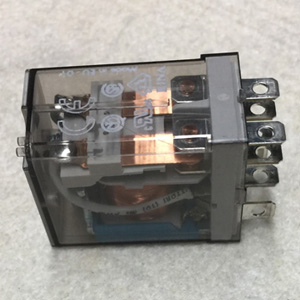

| 20-506b |  | Mini Relay DPDT 120VAC 56.32 | H-3 | $16.80 | |

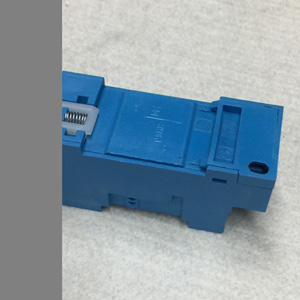

| 20-516 |  | Relay Base Mini DPDT 96.72 | H-3-1 | $10.14 | |

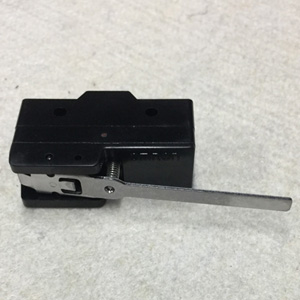

| 20-601 |  | Head Limit Switch | B-2 | $24.70 | |

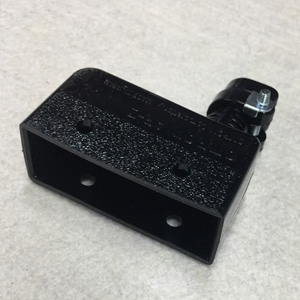

| 20-605 |  | Limit switch cover | B-2-1 | $11.04 | |

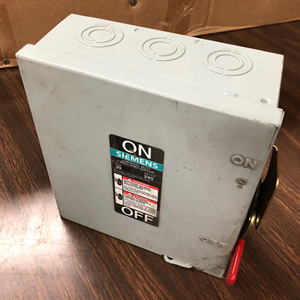

| 20-701 |  | Switch Safety 30A (OK-375) | T-2 | $125.97 | |

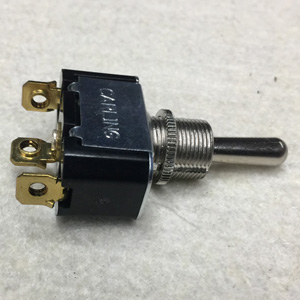

| 20-740G |  | Toggle Switch-Spring Return | A-5 | $24.87 | |

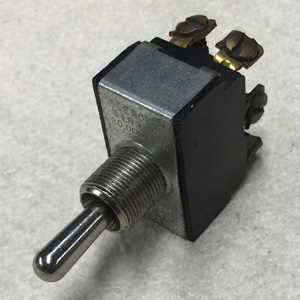

| 20-741 |  | ON/OFF Toggle Switch | A-5-1 | $7.89 | |
| 20-815 |  | Round Legend E-Stop | A-2815 | $9.75 | |
| 20-824 |  | Push Button 22mm green block | A-2 | $25.74 | |

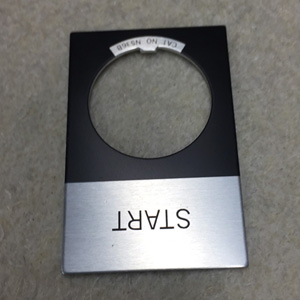

| 20-824 Plate |  | Start Legend Plate 22mm | A-2-1 | $7.75 | |

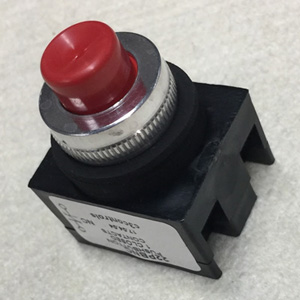

| 20-825 |  | Push Button 22mm red block | A-2-3 | $25.74 | |

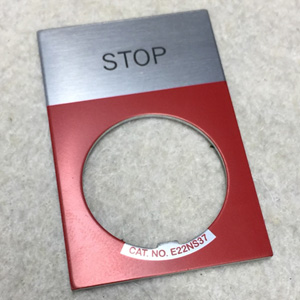

| 20-825 Plate |  | Stop Legend Plate 22mm | A-2-4 | $7.75 | |

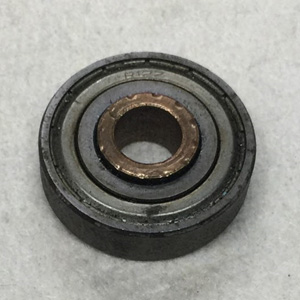

| 30-1102a |  | R12-ZZ | WHS-G-D | $12.90 | |

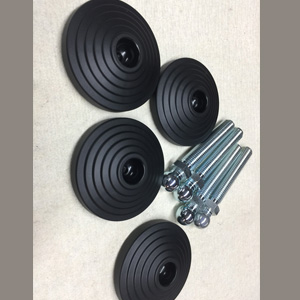

| 30-2208 |  | Leveling Foot 3.94 base 4″ | C-6 | $50.90 | |

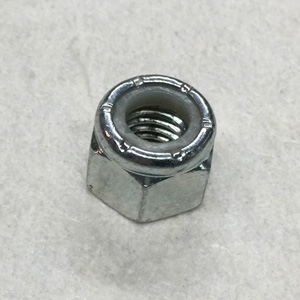

| 30-341 |  | 1/2-13 Nylon Lock Nuts | WHS-B-C4 | $7.20 | |

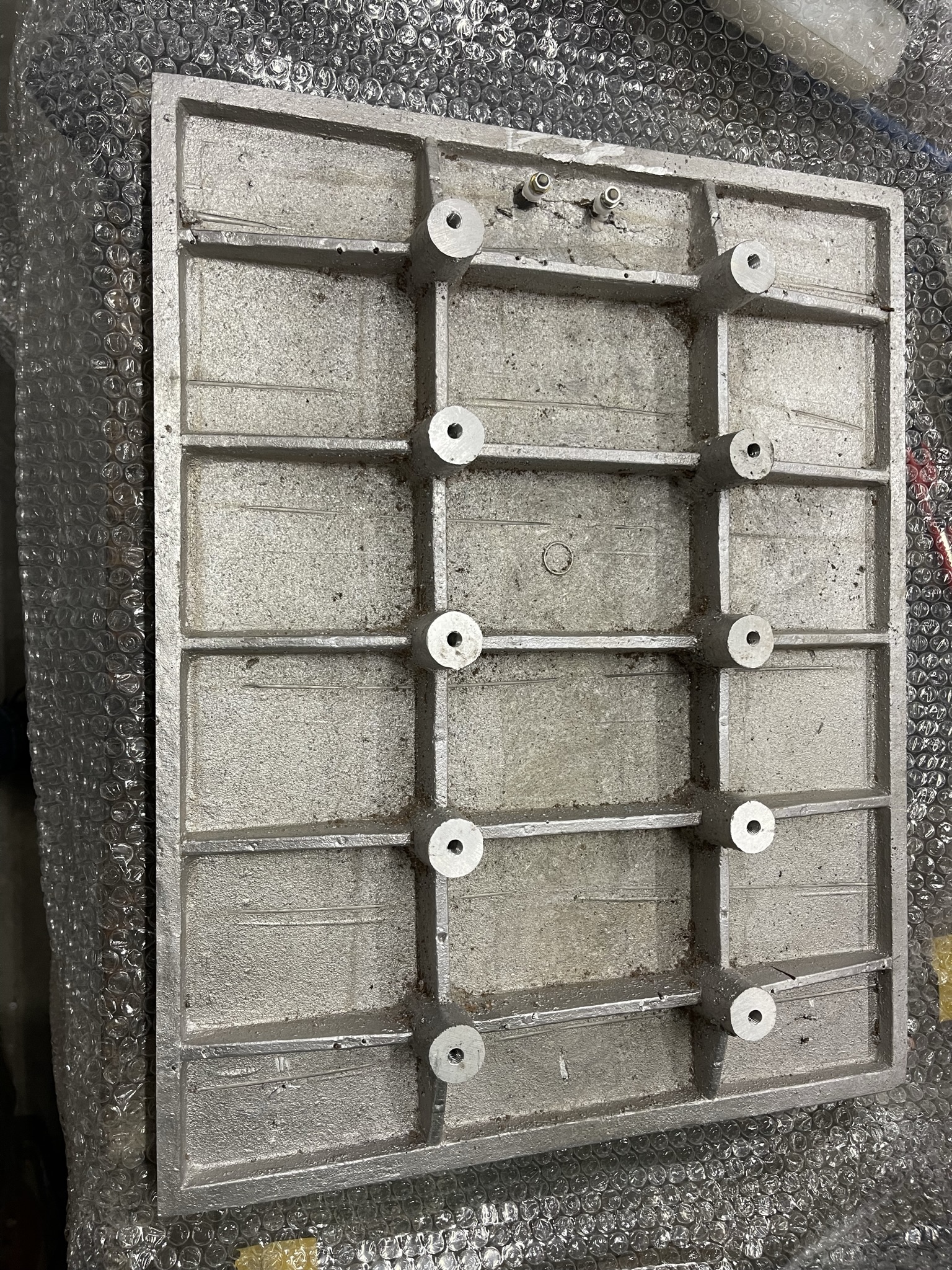

| 30-347-1 |  | Cast Heater Plate 16″x20″ | $950.00 | | |

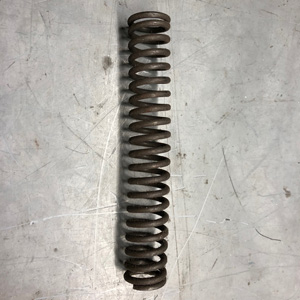

| 30-911 |  | Springs 1/2″ x 4″ | WHS | $39.00 | |
| 38027 |  | Rear mount OK-375 | WHS-I-B3 | $282.00 | |

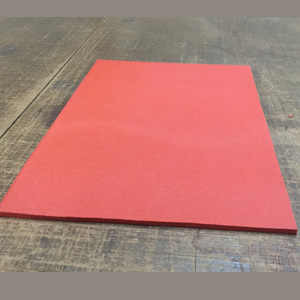

| 50-806a |  | 3/8″ x 36″ Silicone Rubber | BELTROOM | $140.00 | |

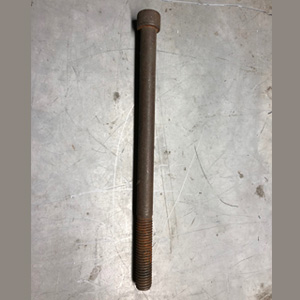

| 60-156 |  | 1/2-13 x 7 1/2″ SHCS Bolt | WHS-B-C5 | $7.35 | |
| Name | Image | Summary | Bin | Price | Buy |
|---|---|---|---|---|---|
| 10-403 | | Solenoid Valve Airbag Press | C-4-2 | $133.14 | |
| 20-102 | | Temperature Controller (Machine with No Touchscreen) | G-3 | $525.20 | |
| 20-106 | | Temperature Controller E5CSV | G-3106 | $415.90 | |
| 20-201 | | Timer Socket | G-3-2 | $18.10 | |
| 20-605 | | Limit switch cover | B-2-1 | $11.04 | |
